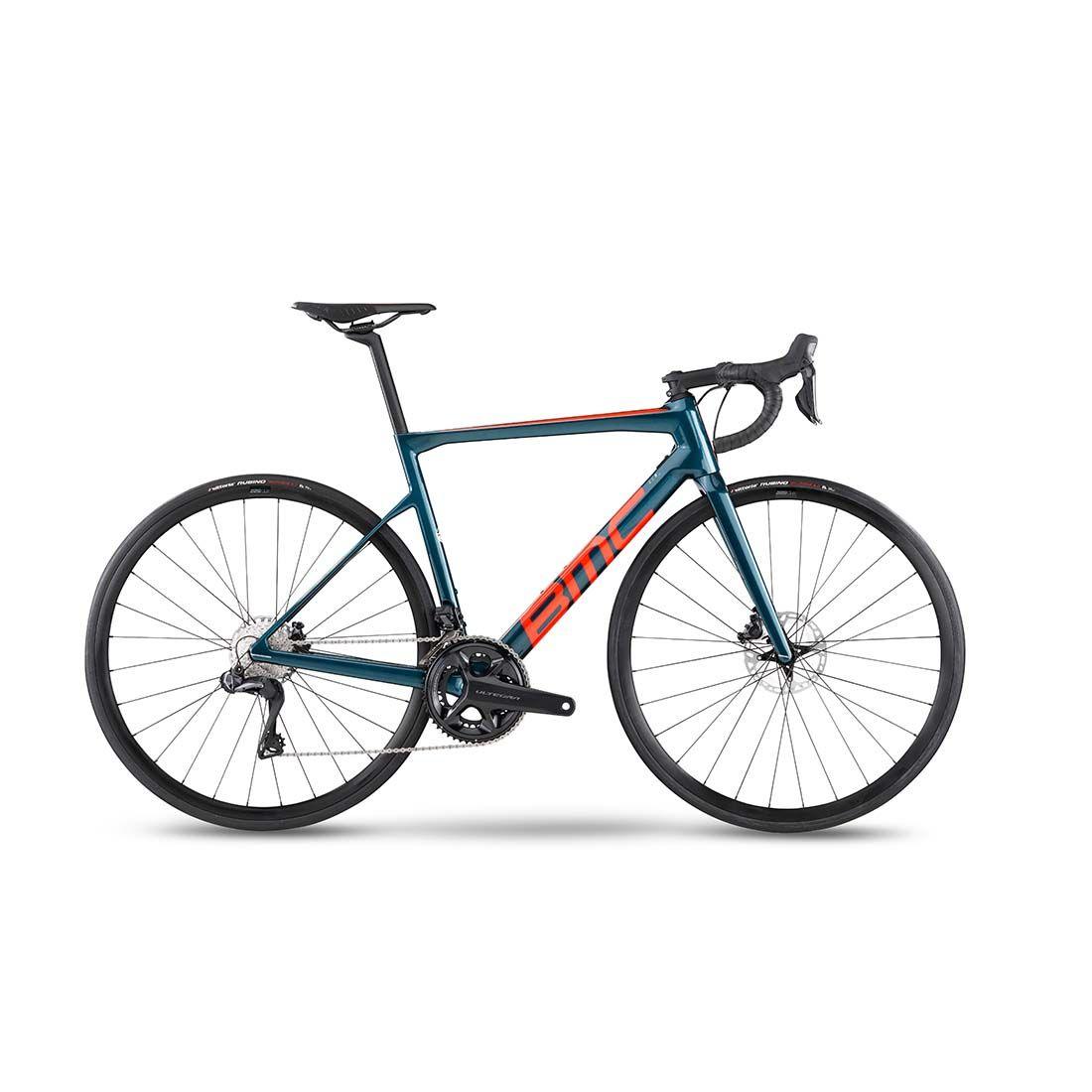

The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Equipped with Shimano Ultegra Di2 12-speed, the Teammachine SLR THREE is great value, with XRD-522 tubeless ready wheels and a conventional aluminium bar and stem completing the build.
INNOVATION
Accelerated Composites Evolution Technology + (ACE+)
ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key factor, Aerodynamics.
Aerocore Design
The superlight carbon seamlessly integrate wwith the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles. Available as an upgrade on the Teammachine SLR line.
D-shaped Seatpost
The latest evolution of our signature D-shape seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.
Comfort Is Speed
The new Teammachine SLR is more complaint than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology. Fine tuning of the carbon layups, essential vertical frame and seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.
Bottom bracket and Torsional Stiffness
Renowned for its power transfer, the new Teammachine SLR goes one step further, with its new down tube shape and optimised carbon layup providing even greater bottom bracket shell support.
Fork Profile
An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
FULL SPECIFICATIONS
FRAME:
- Teammachine SLR Carbon with Aerocore Design
- Stealth Dropout Design
- TCC Race Compliance Level
- PF86 Bottom Bracket
- Integrated Seatpost Clamp
- Flat Mount Disc
- 12x142mm Thru-Axle
- Optimized for Aerocore Bottle Cages
FORK:
- Teammachine SLR Carbon
- TCC Race Compliance Level
- Internal Cable Routing
- Flat Mount Disc
- Stealth Dropout Design
- 12x100mm Thru-Axle
- 48mm Offset (Size 47-51) 43mm Offset (Size 54-61)
CHAINWHEEL: SHIMANO Ultegra 52-36TCASSETTE: SHIMANO Ultegra 11-34TCHAIN: SHIMANO UltegraREAR DERAILLEUR: SHIMANO Ultegra Di2SHIFTERS: SHIMANO Ultegra Di2BRAKES: SHIMANO Ultegra RT-MT800 Rotors (160/140)HANDLEBAR: BMC RAB 02 Ergo Top Shape Compact BendSTEM: BMC RSM01SEATPOST: Teammachine SLR Carbon D-Shaped Seatpost - 15mm OffsetSADDLE: Fizik Antares R7HUBS: XRD-522RIMS: XRD-522 Tubeless Ready 25 mmTIRES: Vittoria Rubino 25mmTIRE CLEARANCE: 30mm (Measured Width)Extras: Aerocore Bottle CagesWEIGHT: 7.76kg / 17.11lbWEIGHT LIMIT: 110kg / 242lbASTM CLASSIFICATION: Level 1
FRAMESET
- Teammachine SLR ACE carbon frame with Aerocore design, Tuned Compliance Concept Race
- Teammachine SLR ACE carbon fork with Aerocore design, Tuned Compliance Concept Race
- Teammachine SLR ACE carbon D-shape seatpost
Teammachine SLR features classic, round steerer forks. Models equipped with ICS stems use dedicated components that are adapted for use on round steerer forks.*
TECHNICAL DETAILS
- Aerocore: aerodynamic featherweight carbon bottle cage system (available upgrade)
- Downtube bottle cage
- Seat tube bottle cage
- Internal cable management
- Integrated seat clamp
- Easy access Di2 junction box integrated in downtube
- Stealth droputs with dedicated stealth thru-axles
- ASTM level 1
Only use stealth thru-axles provided with Teammachine SLR01 and Teammachine SLR bikes and modules. Stealth dropouts and thru-axles are compatible with most direct-drive indoor trainers.*
Sizes
47, 51, 54, 56, 58, 61
Frame Weight**
990 g
Fork Weight**
375 g
Seatpost Weight**
195 g
COCKPIT
ICS01 Stem with RAB02 Bar
- Integrated Cockpit System stem with internal cable routing and easy fit adjustment
- Handlebar reach/drop: 70/125 mm (RAB02)
- ICS01 Stem Angle: -12.5
- 200 g (stem)
RSM01 Stem with RAB02 Bar
- Classic stem and bar combination
- Handlebar reach/drop: 70/125 mm (RAB02)
- Stem Angle: ±8 (RSM01)
Teammachine SLR models equipped with ICS stems use an adapted version for use on round steerer forks.*
COMPATIBILITY
Frame, Fork and Seatpost
- Tapered fork with round 1-1/8" steerer, flat mount
- Compatible with electronic and mechanical groupsets
- PF86 bottom bracket
- D-Shape seatpost
- Braze-on front derailleur mount
- Replaceable ultra light sandwich rear derailleur hanger
Brakes
- Front brake: flat mount, 160 mm rotors only
- Rear brake: flat mount, 140/160 mm rotors
Wheels and Axles
- Designed for 25 mm, maximum tire clearance 30 mm (actual measured width)
- Front stealth thru-axle: 12x100 mm (diameter/frame spacing)
- Rear stealth thru-axle: 12x142 mm (diameter/frame spacing)
*Notes about proprietary technology
**Weight for the lightest finish, including complete hardware with size 54 frames
Features
| Brand |
BMC |
| Colour |
Deep Sea & Neon Red |
| Range |
Teammachine |
| Bike Type |
Road |
| Chainwheel |
SHIMANO Ultegra 52-36T |
| Cassette |
SHIMANO Ultegra 11-34T |
| Chain |
Shimano Ultegra |
| Rear Derailleur |
SHIMANO Ultegra Di2 |
| Shifters |
SHIMANO Ultegra Di2 |
| Brake |
SHIMANO Ultegra RT-MT800 Rotors (160/140) |
| Handlebar |
BMC RAB 02 Ergo Top Shape Compact Bend |
| Stem |
BMC RSM01 |
| Seatpost |
Teammachine SLR Carbon D-Shaped Seatpost - 15mm Offset |
| Saddle |
Fizik Antares R7 |
| Hubs |
XRD-522 |
| Rims |
XRD-522 Tubeless Ready 25 mm |
| Tires |
Vittoria Rubino 25mm |
| ASTM Classification |
Level 1 |
| eBike |
No |
| Frame Weight |
990 g |
| Frame Material |
Carbon |
