Top up 1kWh in only 1.3 hours - Charge 8× faster while you drive with our EcoFlow 800W Alternator Charger and recharge your power station in only 1.3 hours. With the EcoFlow 800W Alternator Charger, charge 8 times faster than with traditional vehicle auxiliary power outlets simply by using excess...

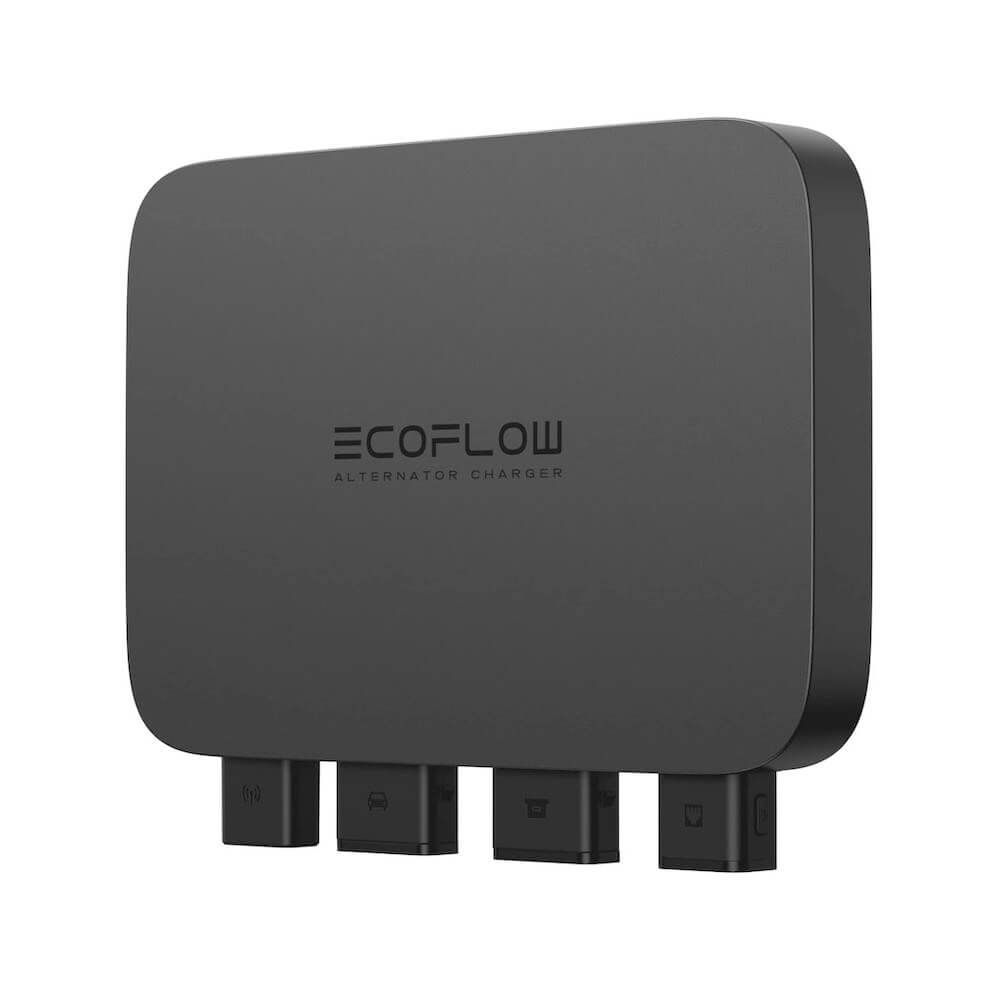

Top up 1kWh in only 1.3 hours - Charge 8× faster while you drive with our EcoFlow 800W Alternator Charger and recharge your power station in only 1.3 hours. With the EcoFlow 800W Alternator Charger, charge 8 times faster than with traditional vehicle auxiliary power outlets simply by using excess energy generated by your vehicle. The charger uses its onboard DC-DC converter to restore your EcoFlow power station's energy while you drive
• Triple the value with a 3-in-1 functional design - The 3-in-1 charger, maintainer, and jump starter saves time, money, and precious in-vehicle space. With its smart and efficient fast charging capabilities, you'll stay powered no matter how long you're on the road
• Use your car's alternator to refuel your portable power station. Recharge your vehicle starter battery or RV house battery using your portable power station. Extends your vehicle starter battery or RV house battery life by using a lower electrical current
• Extend your RV house battery runtime - Conveniently adapts to 12V/24V RV house batteries.Connects to EcoFlow portable power stations and protects RV house batteries while expanding energy storage capacity by up to 7.2kWh*
• Safety-assured for any journey - With a high thermal resistance, Gallium Nitride (GaN) technology ensures safe charging every single time.The 800W Alternator Charger offers multiple safety features, including undervoltage protection that prevents excessive energy use and damage to the starting battery. A 2-year warranty ensures your experience and peace of mind
• Connect your 800W Alternator Charger to your vehicle's starter battery or RV's house battery to enjoy a worry-free power experience during your journey
• Installation:
- Step 1: Connect the fuse cable to the input cable on one end
- Step 2: Connect the fuse cable to the vehicle battery on the other end
- Step 3: Connect the black cable to the chassis terminal
- Step 4: Thread the other end of the input cable through the car body towards the charger. If the input cable is bulky or difficult to pull through, disconnect the cable ends before threading
- Step 5: Plug the other side of the input cable into the EcoFlow 800W Alternator Charger
- Step 6: Plug in the output cable from the EcoFlow 800W Alternator Charger to the portable power station
• Model: EF-FC-301-1
• Wi-Fi:
- Frequency: 2412MHz-2472MHz
- Maximum output power: <20dBm
• Bluetooth:
- Frequency: 2402MHz-2480MHz
- Maximum output power: <10dBm
• Charging Mode:
- Input: 11V-31V, 76A Max.
- Output: 40V-60V, 800W Max.
• Battery Maintenance Mode:
- Input: 40V-60V, 3A Max.
- Output: 13.8V/27.6V, 100W Max.
• Reverse Charging Mode:
- Input: 40V-60V, 21A Max.
- Output: 13.8V/27.6V, 800W Max.
• Fuse's Rated Current: 125A
• Protection Type protection: everse polarity, Overcurrent, Short circuit, Overvoltage, Undervoltage
• Operating Temperature: –20℃ to 60℃
• Storage Temperature: –30℃ to 70℃
• Operating Humidity: ≤95%
• Dimentions: 242 × 194 × 35 mm
• Weight: 2.3 kg
• Compatibility: all EcoFlow DELTA Portable Power Stations, that you can buy from HERE
• In the box:
- 1 х EcoFlow Alternator Charger 800W
- 1 x Input cable (5 m)
- 1 x Installation board
- 1 x Cable puller
- 1 x M6 nut
- 1 x M5
- 1 x XT150 output cable (100 cm)
- 1 x M6
- 1 x Fuse cable
- 1 x ST5.5
- 1 x manual
