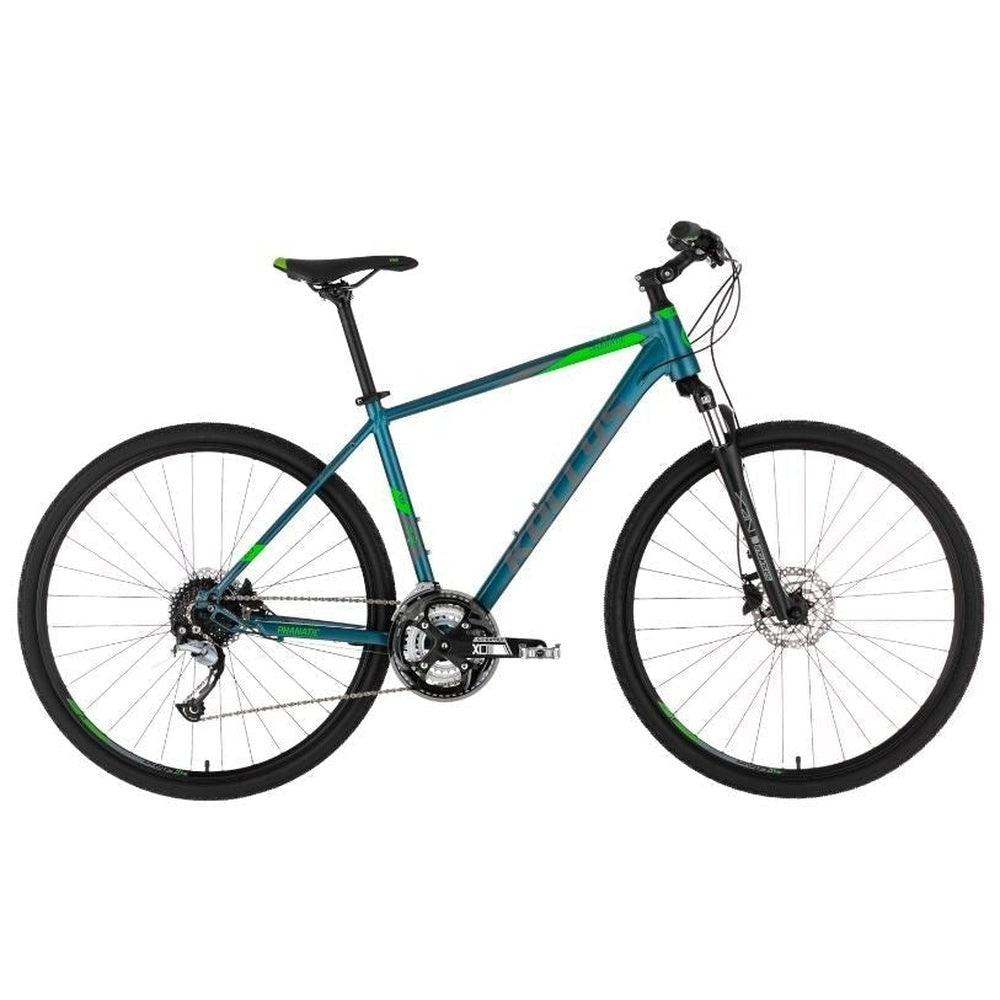

KELLYS Phanatic 10 Bike Medium - Dark Ocean

FRAME

Brand new aluminum frame with Sport Cross Geometry, which ensures a real cross experience in a comfortable position, as well as low weight, durability and unparalleled road holding on both asphalt and off-road.

FORK

Cross-optimized with SR Suntour NEX Speed ​​Lockout provides a high level of comfort and excellent drive efficiency when needed.

DRIVE

Shimano drive with low maintenance, strong design, fast shifting and a wide range of gears suitable for all terrains.

CONTROL

Cross-profile with adjustable stucco, handlebar and soft grip for comfort on both short and long journeys.

SPECIFICATIONS

• FRAME
  KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
• FRAME SIZE
  M / L
• FORK
  SR SUNTOUR NEX HLO, 63mm, coil spring
• HEAD PARTS
  semi-integrated
• B.B.PARTS
  cartridge (113mm)
• CRANKSET
  SR SUNTOUR XCM (48x36x26T) - length 175mm
• SHIFTERS
  SHIMANO ST-EF505-9 EZ-fire Plus
• F/DERAILLEUR
  SHIMANO TY710 (31.8mm)
• R/DERAILLEUR
  SHIMANO Acera M3000 (direct mount)
• SPEED
  27
• CASSETTE SPROCKET
  SHIMANO CS-HG200-9 (11-34T)
• CHAIN
  KMC X9 (114 links)
• BRAKES
  SHIMANO MT200 Hydraulic Disc
• BRAKE ROTORS
  160mm front / 160mm rear
• BRAKE LEVERS
  SHIMANO ST-EF505-9 EZ-fire Plus
• HUBS
  SHIMANO TX505 Disc Center Lock (32 holes)
• RIMS
  KLS Draft Disc 622x21 (32 holes / eyelets)
• SPOKES
  stainless steel black
• TIRES
  INNOVA 44-622 (700x42C)
• STEM
  KLS CRX 70 adjustable - diam 28.6mm / bar bore 31.8mm / length 95mm
• HANDLEBAR
  KLS CRX 70 RiseBar - diam 31.8mm / rise 25mm / width 640mm (M), 660mm (L)
• GRIPS
  KLS Token 2Density
• SEAT POST
  KLS Active - diam 27.2mm / length 350mm
• SADDLE
  SELLE ROYAL Vivo
• PEDALS
  alloy
