Step into the World of mountain bikes with the all-new Contrail family of bikes, your versatile companion and ticket to explore the outdoors. Featuring a modern trail inspired geometry, carefully curated components that back you up at every opportunity as well as a selection of colors and models that leaves nothing to be desired!
Please note that bike specifications are subject to change without prior notice.
-
Frame
Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
-

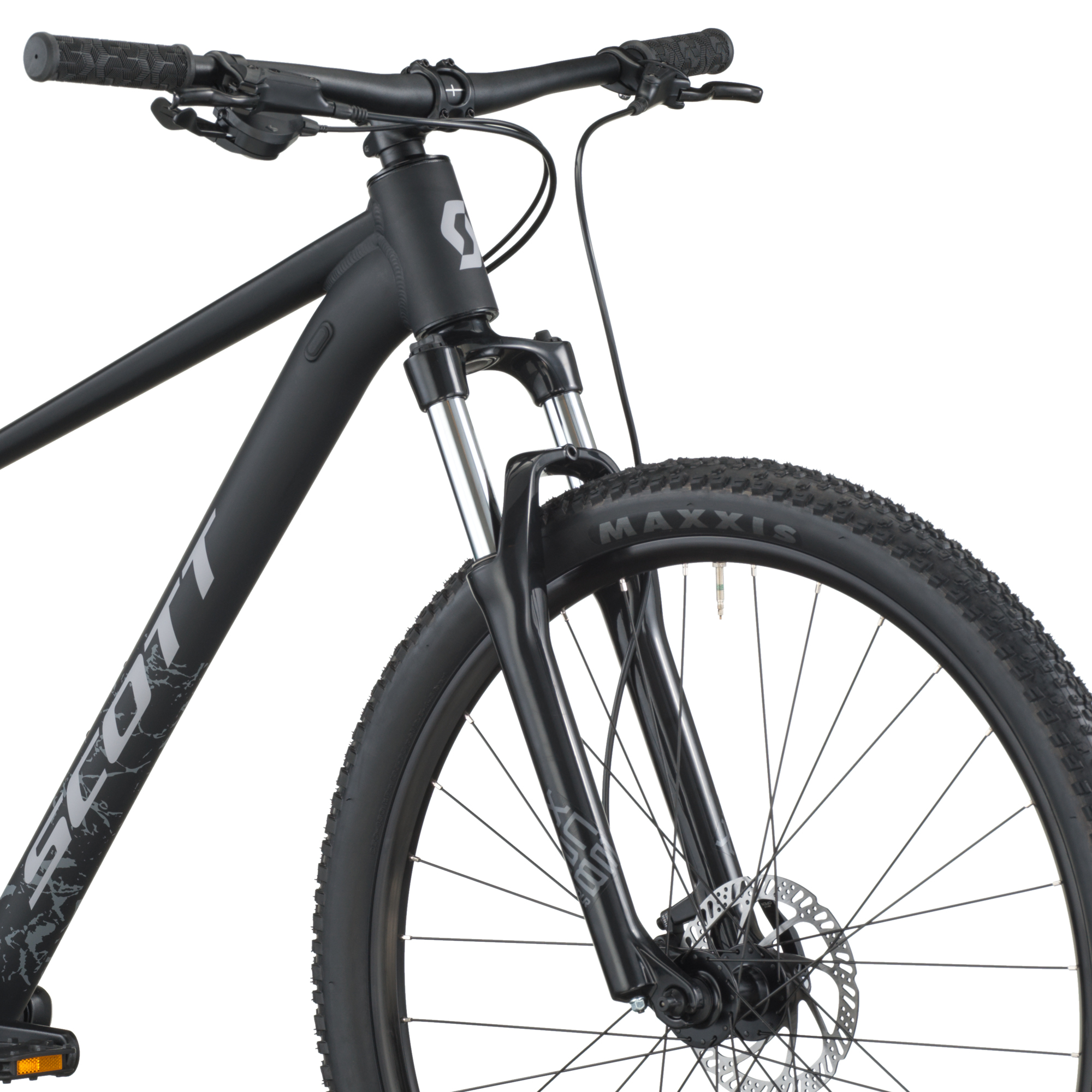

Fork
Suntour XCE28, 100mm travel
-

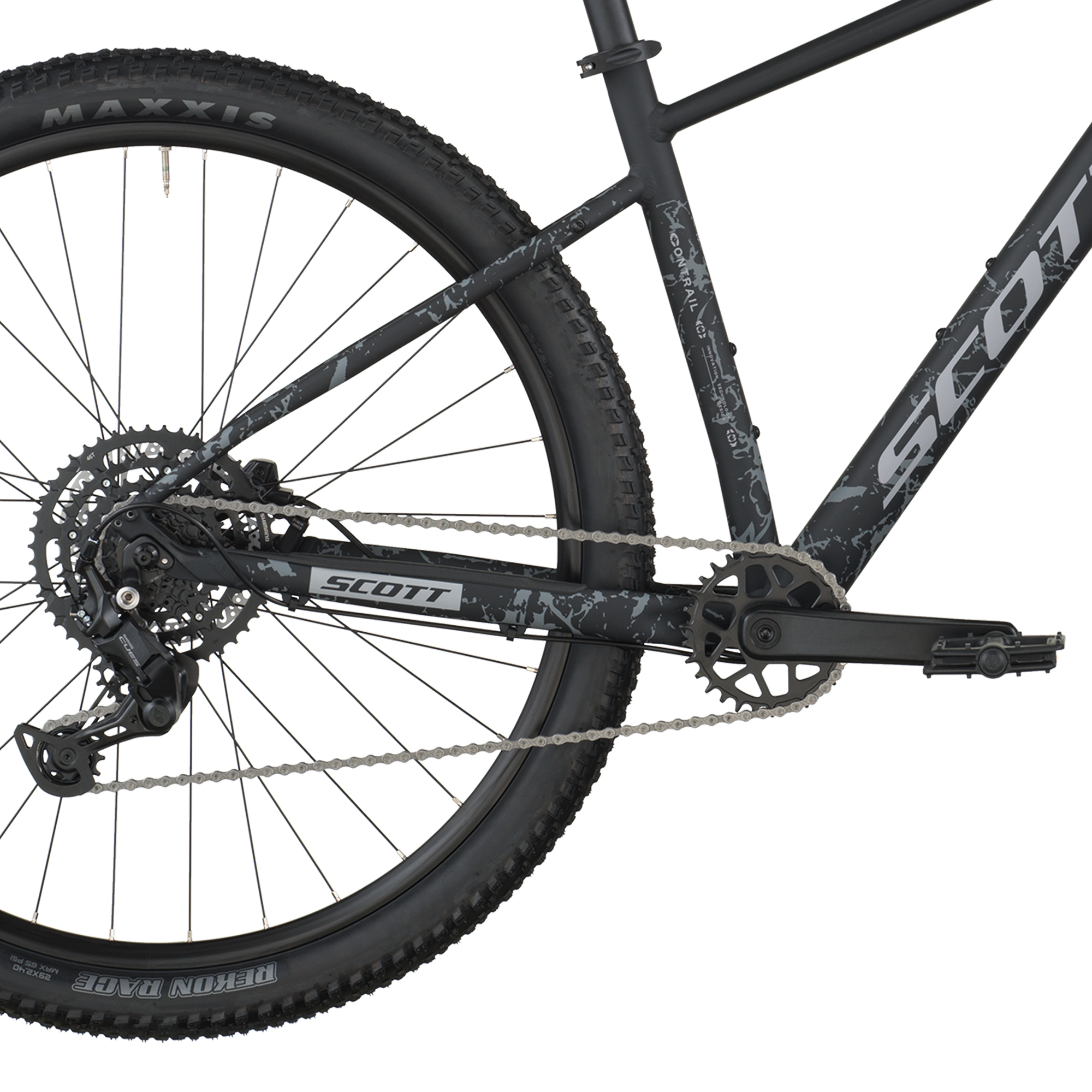

Rear Derailleur
Shimano CUES RD-U4000-GS
Shadow Type, 9 Speed
-
Shifters
Shimano CUES SL-U4000-9, 2 way release
-

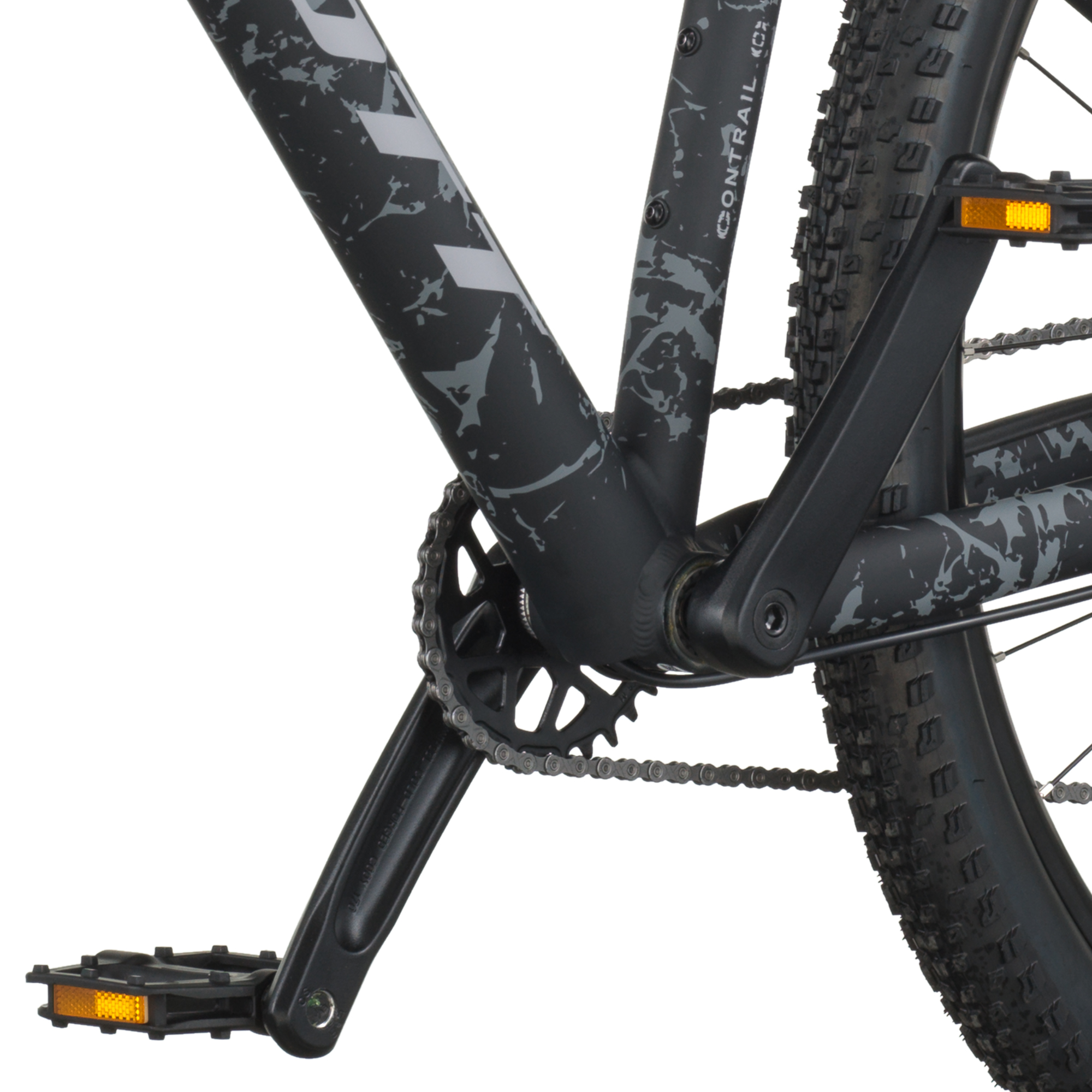

Crankset
Prowheel C10Y-NW Steel
30T
-
BB-Set
Feimin FP.B908N
BB73, square taper
-
Chain
KMC Xglide
-
Cassette
Shimano CUES CS-LG400-9, 11-46T
-
Brakes
Tektro HDM275 Hydr. Disc Brakes
-
Rotor
Tektro, 6 bolt, F&R 160mm
-
Handlebar
HL MTB-AL-312BT, 720mm, black, 12mm rise
DDK Grip
-
H'stem
HL TDS-C342-8FOV, 10°, 31.8, Black
-
Seatpost
HL SP C212
31.6mm, 350mm, Black
-
Seat
DDK Saddle
-
Headset
Syncros OE Press Fit, 1 1/8"
ZS56-62mm
-
Front Hub
Formula DC-19 FQR Disc
-
Rear Hub
Formula DC-25 8s RQR Disc
-
Spokes
14 G, stainless, black
-
Rims
Alexrims X-20 Disc
32H, black
-
Front Tire
Maxxis Rekon Race, 2.4", DUAL, 60PTI
-
Rear Tire
Maxxis Rekon Race, 2.4", DUAL, 60PTI
-
Pedals
Feimin FP-803
-
Approx weight in KG
14.33 (without pedals)
-
Approx weight in LBS
31.59 (without pedals)
-
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

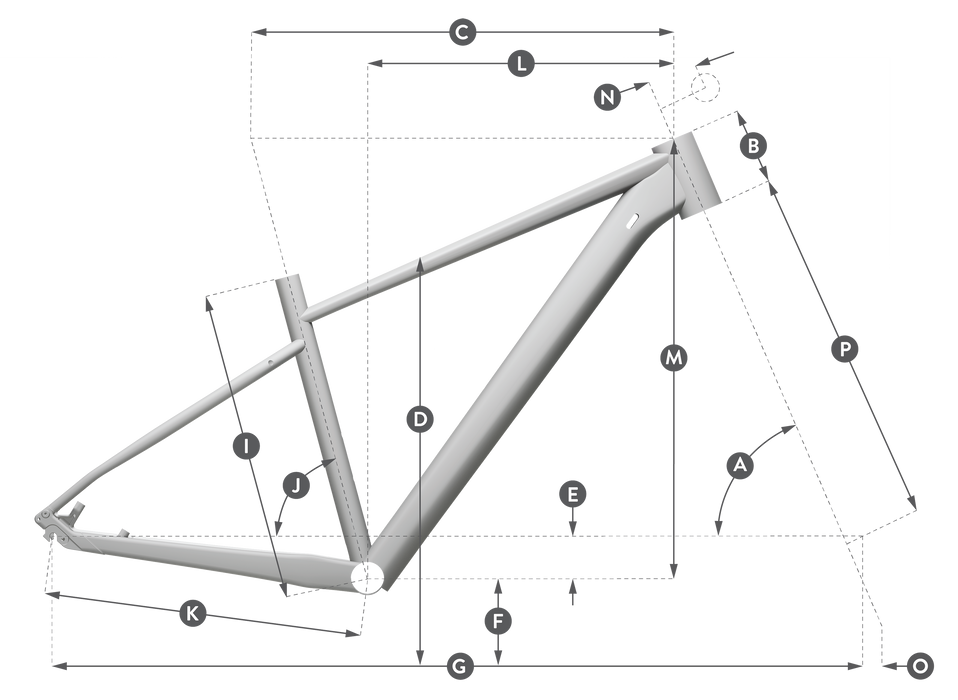

| A |
head tube angle / angle tube de direction |
|
|
|
|
67.0 ° |
|
67.0 ° |
|
67.0 ° |
|
67.0 ° |
|
67.0 ° |
|
67.0 ° |
|
|
|
| B |
head tube length / hauteur tube de direction |
|
|
|
|
100.0 mm |
100.0 mm |
110.0 mm |
125.0 mm |
135.0 mm |
150.0 mm |
|
|
| C |
top tube horizontal / longueur horizontale tube supérieur |
|
|
|
|
545.0 mm |
575.0 mm |
595.0 mm |
625.0 mm |
645.0 mm |
675.0 mm |
|
|
| D |
standover height / hauteur entre-jambes |
|
|
|
|
728.0 mm |
767.0 mm |
790.0 mm |
812.0 mm |
845.0 mm |
878.0 mm |
|
|
| E |
BB offset / deport axe de pédalier |
|
|
|
|
-44.0 mm |
-60.0 mm |
-60.0 mm |
-60.0 mm |
-60.0 mm |
-60.0 mm |
|
|
| F |
BB height / hauteur axe de pédalier |
|
|
|
|
308.5 mm |
316.0 mm |
316.0 mm |
316.0 mm |
316.0 mm |
316.0 mm |
|
|
| G |
wheel base / entraxe roues |
|
|
|
|
1,104.9 mm |
1,147.9 mm |
1,169.4 mm |
1,201.5 mm |
1,223.0 mm |
1,255.1 mm |
|
|
| H |
BB center to toptube center / dist. boitier - milieu tube supérieur |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| I |
BB center to top of seattube / dist. boitier - sommet tube de selle |
|
|
|
|
355.0 mm |
395.0 mm |
440.0 mm |
480.0 mm |
530.0 mm |
580.0 mm |
|
|
| J |
seat angle / angle tube de selle |
|
|
|
|
75.0 ° |
|
75.0 ° |
|
75.0 ° |
|
75.0 ° |
|
75.0 ° |
|
75.0 ° |
|
|
|
| K |
chainstay / longueur des bases |
|
|
|
|
445.0 mm |
457.0 mm |
457.0 mm |
457.0 mm |
457.0 mm |
457.0 mm |
|
|
| L |
reach / reach |
|
|
|
|
390.7 mm |
411.7 mm |
429.2 mm |
455.5 mm |
473.0 mm |
499.3 mm |
|
|
| M |
stack / stack |
|
|
|
|
576.0 mm |
609.5 mm |
618.5 mm |
632.5 mm |
641.7 mm |
655.5 mm |
|
|
| N |
stem length / longueur potence |
|
|
|
|
45.0 mm |
45.0 mm |
45.0 mm |
60.0 mm |
75.0 mm |
75.0 mm |
|
|
| 0 |
trail / chasse au sol |
|
|
|
|
104.0 mm |
109.6 mm |
109.6 mm |
109.6 mm |
109.6 mm |
109.6 mm |
|
