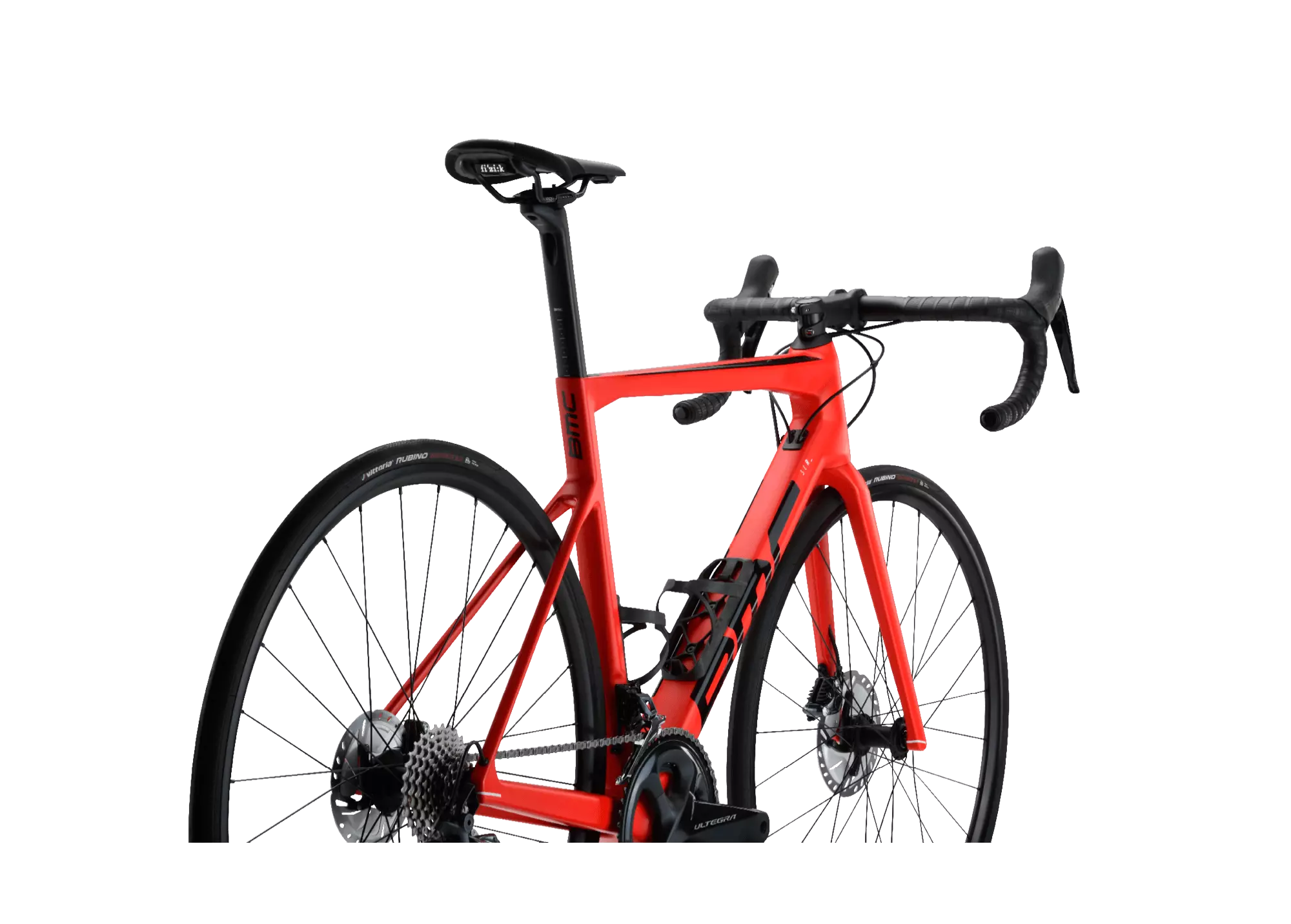

Please Note. Image may differ from the final product, consult specifications below.
The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. The Teammachine SLR FIVE is the highest specification Teammachine with mechanical shifting, featuring Shimano Ultegra 11-speed, Mavic Open Disc wheelset, and an aluminium bar and stem.
Innovation
Accelerated Composites Evolution Technology + (ACE+)
ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key factor, Aerodynamics.
Aerocore Design
The superlight carbon cages seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles. Available as an upgrade on the Teammachine SLR line.
D-Shape Seatpost
The latest evolution of our signature D-Shape seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.
Comfort Is Speed
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology. Fine tuning of the carbon layups, essential vertical frame and seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.
Bottom Bracket and Torsional Stiffness
Renowned for its power transfer, the new Teammachine SLR goes one step further, with its new down tube shape and optimised carbon layup providing even greater bottom bracket shell support.
Fork Profile
An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
SPECIFICATIONS
-
Frame
Teammachine SLR Carbon with Aerocore Design • Stealth Dropout Design • TCC Race Compliance Level • PF86 Bottom Bracket • Integrated Seatpost Clamp • Flat Mount Disc • 12x142mm Thru-Axle • Optimized for Aerocore Bottle Cages
-
Fork
Teammachine SLR Carbon • TCC Race Compliance Level • Internal Cable Routing • Flat Mount Disc • Stealth Dropout Design • 12x100mm Thru-Axle • 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
-
Chainwheel
SHIMANO Ultegra 52-36T
-
Cassette
SHIMANO Ultegra 11-30T
-
Chain
SHIMANO Ultegra
-
Rear Derailleur
SHIMANO Ultegra
-
Shifters
SHIMANO Ultegra
-
Brakes
SHIMANO Ultegra, RT800 Rotors (160/140)
-

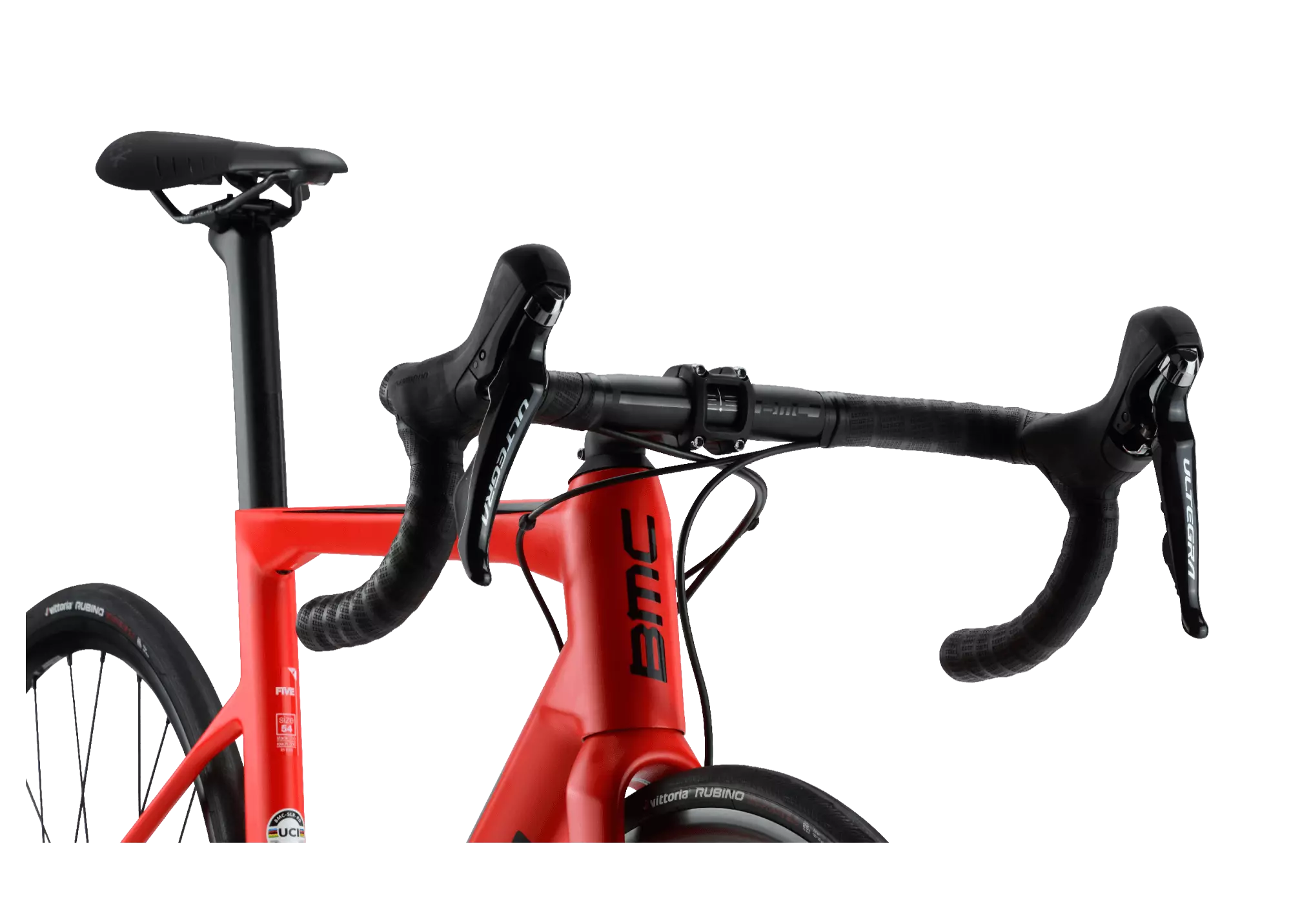

Handlebar
BMC RAB 02, Ergo Top Shape, Compact Bend
-
Stem
BMC RSM01
-
Seatpost
Teammachine SLR Carbon D-Shaped Seatpost • 15mm Offset
-
Saddle
Fizik Antares R7
-
Hubs
CL-712 (F)/RXC-1425 (R), Thru Axle
-
Rims
Mavic Open Disc
-
Tires
Vittoria Rubino, 25mm
-
Tire Clearance
30mm (Measured Width)
-
Weight
8.00kg / 17.64lb
-
Weight Limit
110kg / 242lb
-
ASTM Classification
Level 1
GEOMETRY
| Size |
47 |
51 |
54 |
56 |
58 |
61 |
| Rider Height CM |
<166 |
166-174 |
172-180 |
178-186 |
184-192 |
>190 |
| Stack MM |
506 |
530 |
550 |
565 |
584 |
608 |
| Reach MM (reach) |
367 |
377 |
386 |
392 |
401 |
409 |
| Seat Tube MM (st) |
423 |
468 |
504 |
524 |
545 |
574 |
| Top Tube MM (tt) |
517 |
534 |
549 |
559 |
574 |
589 |
| Head Tube MM (ht) |
110 |
130 |
145 |
165 |
184 |
210 |
| Seat Tube Angle (sa) |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
| Head Angle (ha) |
71.5 |
71.5 |
72.3 |
72.3 |
72.3 |
72.3 |
| Rear Center MM (rc) |
410 |
410 |
410 |
410 |
410 |
410 |
| Front Center MM (fc) |
568 |
586 |
589 |
599 |
614 |
630 |
| Wheelbase MM (wb) |
968 |
986 |
989 |
1000 |
1015 |
1030 |
| BB Drop MM (drop) |
69 |
69 |
69 |
69 |
69 |
69 |
| Fork Length MM (fl) |
368 |
368 |
368 |
368 |
368 |
368 |
| Fork Rake MM (fr) |
48 |
48 |
43 |
43 |
43 |
43 |
| Trail MM (trail) |
63 |
63 |
63 |
63 |
63 |
63 |
| Crank Length MM |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
| Stem Length MM |
90 |
90 |
100 |
110 |
110 |
120 |
| Stem Angle |
±8 |
±8 |
±8 |
±8 |
±8 |
±8 |
| Bar Width MM |
400 |
420 |
420 |
420 |
420 |
440 |
| Bar Drop MM |
125 |
125 |
125 |
125 |
125 |
125 |
| Bar Reach MM |
70 |
70 |
70 |
70 |
70 |
70 |
| Post Offset MM |
15 |
15 |
15 |
15 |
15 |
15 |
| Standover Height mm |
717 |
752 |
779 |
797 |
817 |
843 |
| Seatpost Length MM |
330 |
380 |
380 |
380 |
380 |
380 |
